Outside wall constructions

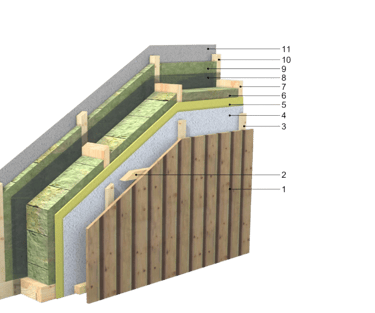

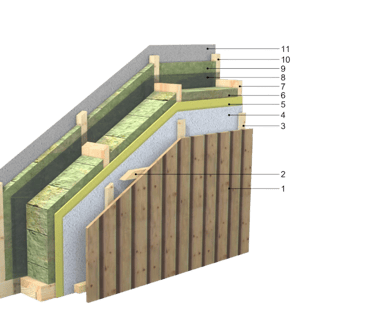

Vertical cladding

(U=0,164W/m²K)

1 Spruce vertical cladding 19x145mm, primed, 2 times painted

2 Calibrated timber C24 45x45mm (laths), cc=600mm

3 Calibrated timber C24 28x45mm (ventilation laths), cc=600mm

4 Diffusion film Tyvek® Soft

5 GTS 9 wind protection - plaster board

6 Calibrated timber C24 45x195mm, cc=600mm

7 Stone wool insulation Paroc Ultra 100+100mm

8 Moisture barrier film RaniMoBar, 200mkK

9 Calibrated timber C24 45x45mm, cc=600mm

10 Stone wool insulation Paroc Ultra 42mm

11 GKB plasterboard 12,5mm

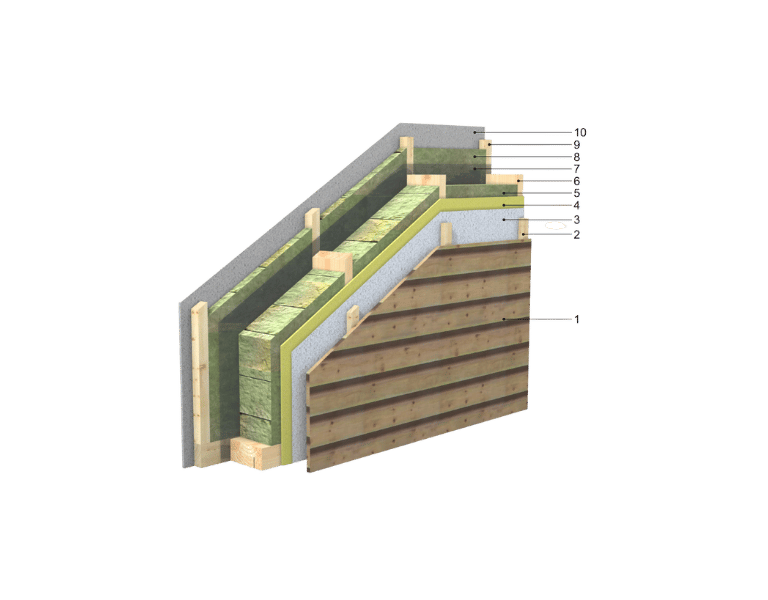

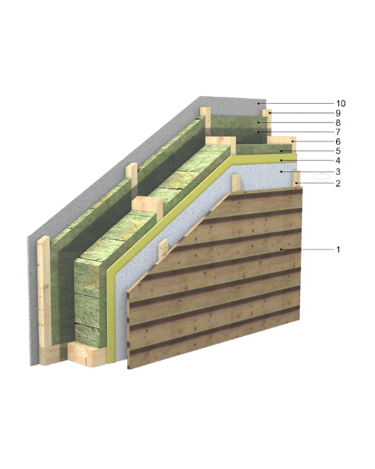

Horizontal cladding

(U=0,164W/m²K)

1 Spruce vertical cladding 19x145mm, primed, 2 times painted

2 Calibrated timber C24 28x45mm (ventilation laths), cc=600mm

3 Diffusion film Tyvek® Soft

4 GTS 9 wind protection - plaster board

5 Calibrated timber C24 45x195mm, cc=600mm

6 Stone wool insulation Paroc Ultra 100+100mm

7 Moisture barrier film RaniMoBar, 200mkK

8 Calibrated timber C24 45x45mm, cc=600mm

9 Stone wool insulation Paroc Ultra 42mm

10 GKB plasterboard 12,5mm

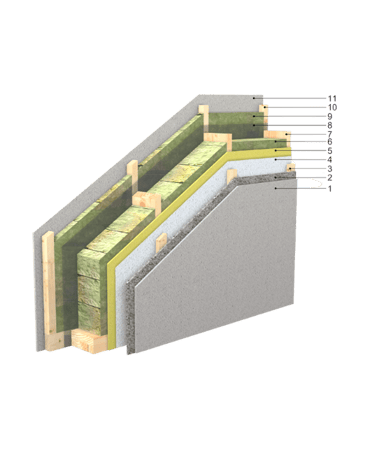

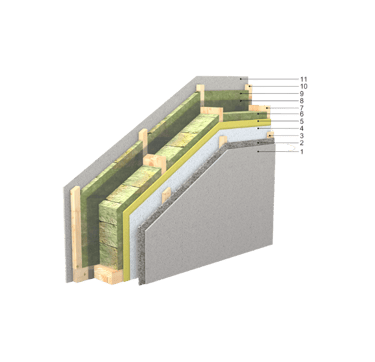

Plastered facade

(U=0,164W/m²K)

1 Cement board Knauf AQUAPANEL OUTDOOR 12,5mm

2 Calibrated timber C24 28x45mm/28x120mm, cc=600mm

3 Diffusion film Tyvek® Soft

4 GTS 9 wind protection - plaster board

5 Calibrated timber C24 45x195mm, cc=600mm

6 Stone wool insulation Paroc Ultra 100+100mm

7 Moisture barrier film RaniMoBar, 200mkK

8 Calibrated timber C24 45x45mm, cc=600mm

9 Stone wool insulation Paroc Ultra 42mm

10 GKB plasterboard 12,5mm

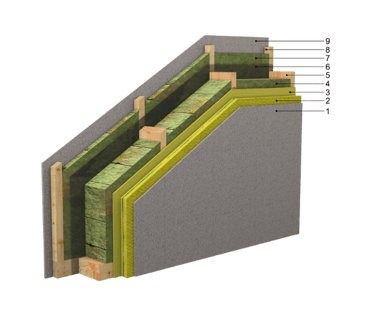

Plastered facade without ventilation

(U=0,141W/m²K)

1 Plaster

2 Stone wool plate for plastered facade PAROC Linio 10

3 GTS 9 wind protection - plaster board or OSB 12mm

4 Calibrated timber C24 45x195mm, cc=600mm

5 Stone wool insulation Paroc Ultra 100+100mm

6 Moisture barrier film RaniMoBar, 200mkK

7 Calibrated timber C24 45x45mm, cc=600mm

8 Stone wool insulation Paroc Ultra 42mm

9 GKB plasterboard 12,5mm
