Roof element constructions

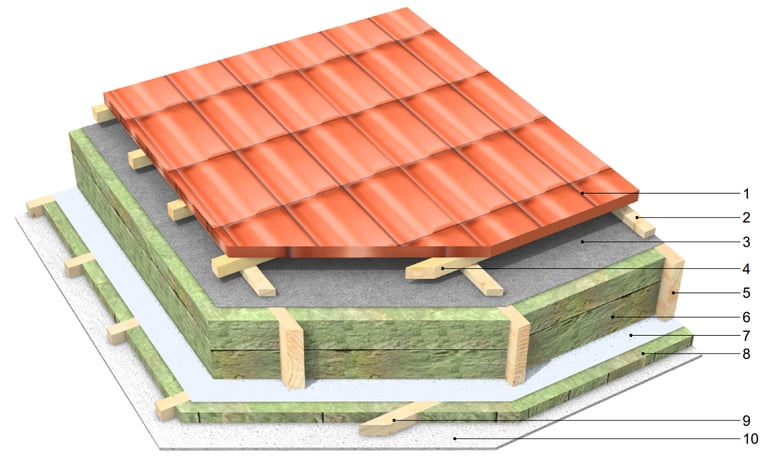

Pitched roof with tiles

(U = 0 ,117 W / m ²K)

Tiles (customer choice)

Calibrated timber C24 45x45mm, cc=300mm

Ventilation laths C24 28x45mm, cc=600mm

Diffusion film SIGA Majcoat 150

Calibrated timber C24 245x45mm, cc=600mm (rafters)

Stone wool Paroc Ultra 200+42mm

Moisture barrier film RaniMoBar, 200mk

Calibrated timber C24 45x45, cc=400mm

Stone wool Paroc Ultra 42mm

GKB plasterboard 12,5mm

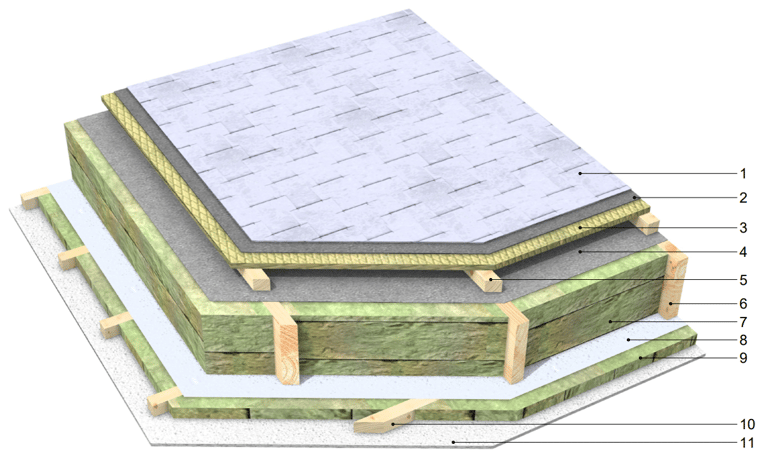

Pitched roof with bitumen cover

(U = 0 ,117 W / m ²K)

Bitumen cover (customer choise)

Base layer

Board Forestia Taktro 22mm

Calibrated timber C24 45x45mm, cc=600mm (ventilation laths)

Diffusion film SIGA Majcoat 150

Calibrated timber C24 245x45mm, cc=600mm (rafters)

Stone wool Paroc Ultra 200+42mm

Moisture barrier film RaniMoBar, 200mk

Calibrated timber C24 45x45, cc=400mm

Stone wool Paroc Ultra 42mm

GKB plasterboard 12,5mm

Flat roof (with ventilation)

(U = 0 ,118 W / m ²K)

Bitumen cover (2 layers)

Board Forestia Taktro 22mm

Calibrated timber C24 45x45mm, cc=600mm

Cakibrated timber C24 45x45mm, cc=600mm

Diffusion film SIGA Majcoat 150

Timber with slope C24, cc=600mm

Stone wool Paroc Ultra 50-150mm

STEICO I-beams 60x300mm, cc=600mm

Stone wool Paroc Ultra 200+100mm

Moisture barrier film RaniMoBar, 200mk

Calibrated timber C24 45x45, cc=400mm

GKB plasterboard 12,5mm

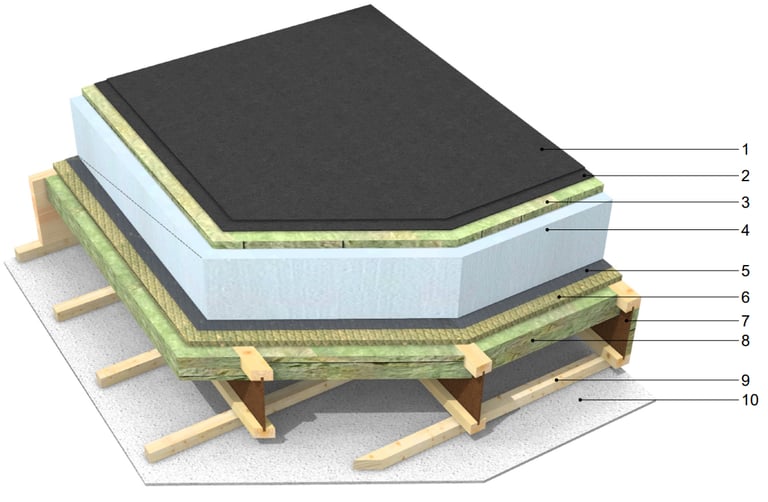

Flat roof (without ventilation)

(U = 0 ,117 W / m ²K)

Bitumen cover (2 layers)

hard stone wool Paroc Rob 60 20mm

Slope polystyrene foam EPS 0351:40 (min 200mm)

Moisture barrier film RaniMoBar, 200mk

Board Forestia Taktro 22mm

STEICO I-beams 60x300mm, cc=600mm

Stone wool Paroc Ultra 100mm

Calibrated C24 45x45, cc=400mm

GKB plasterboard 12,5mm
